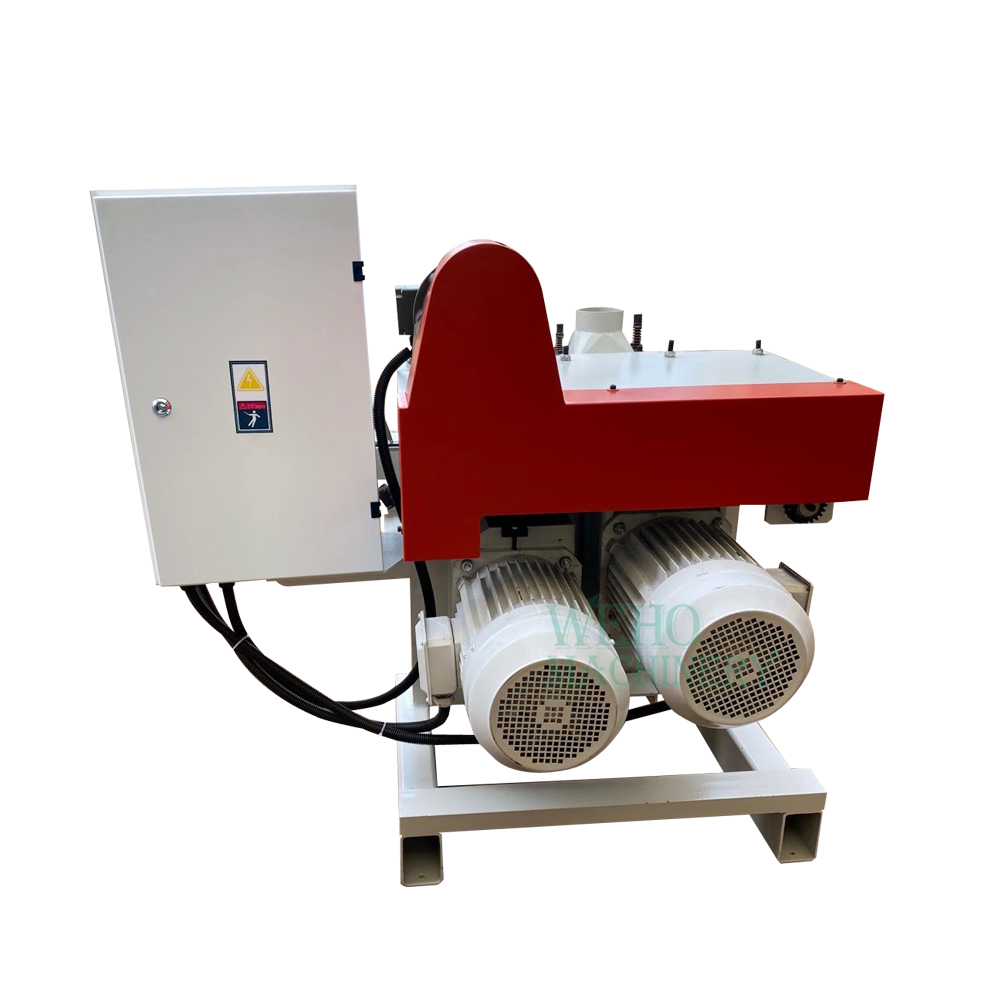

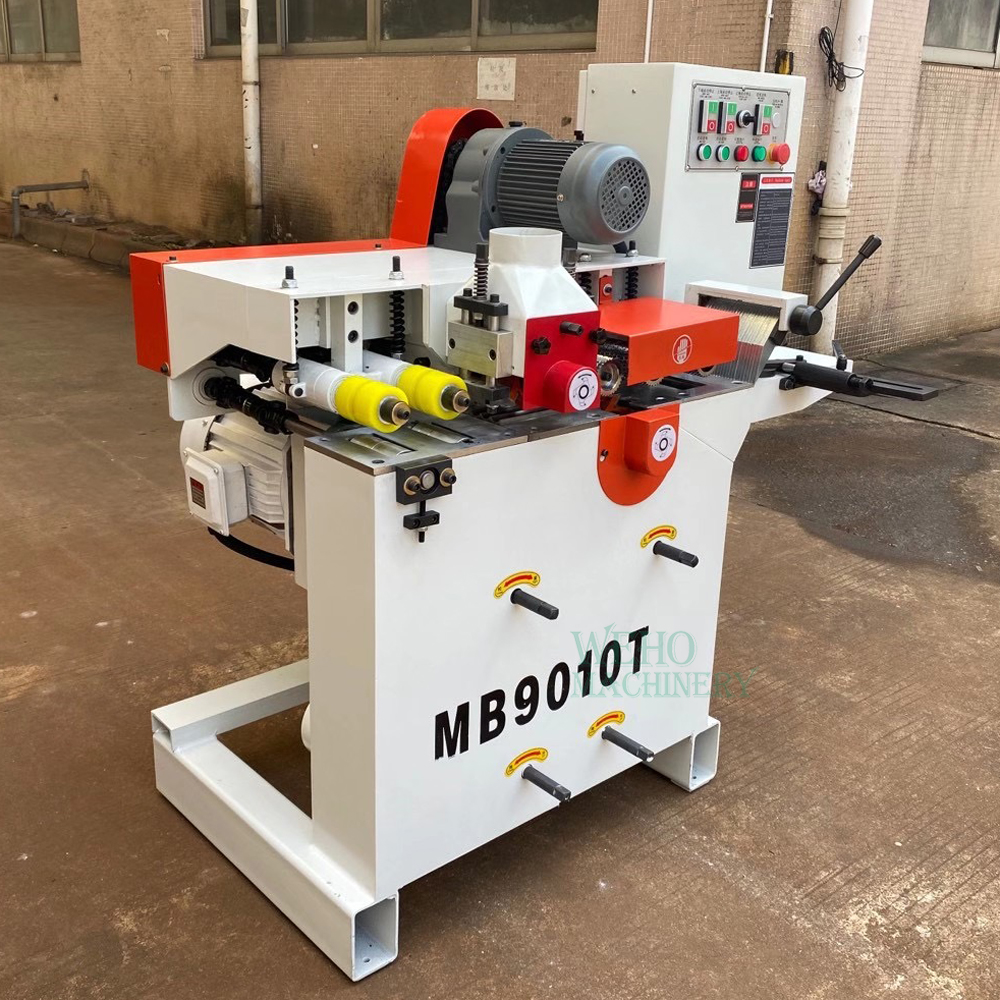

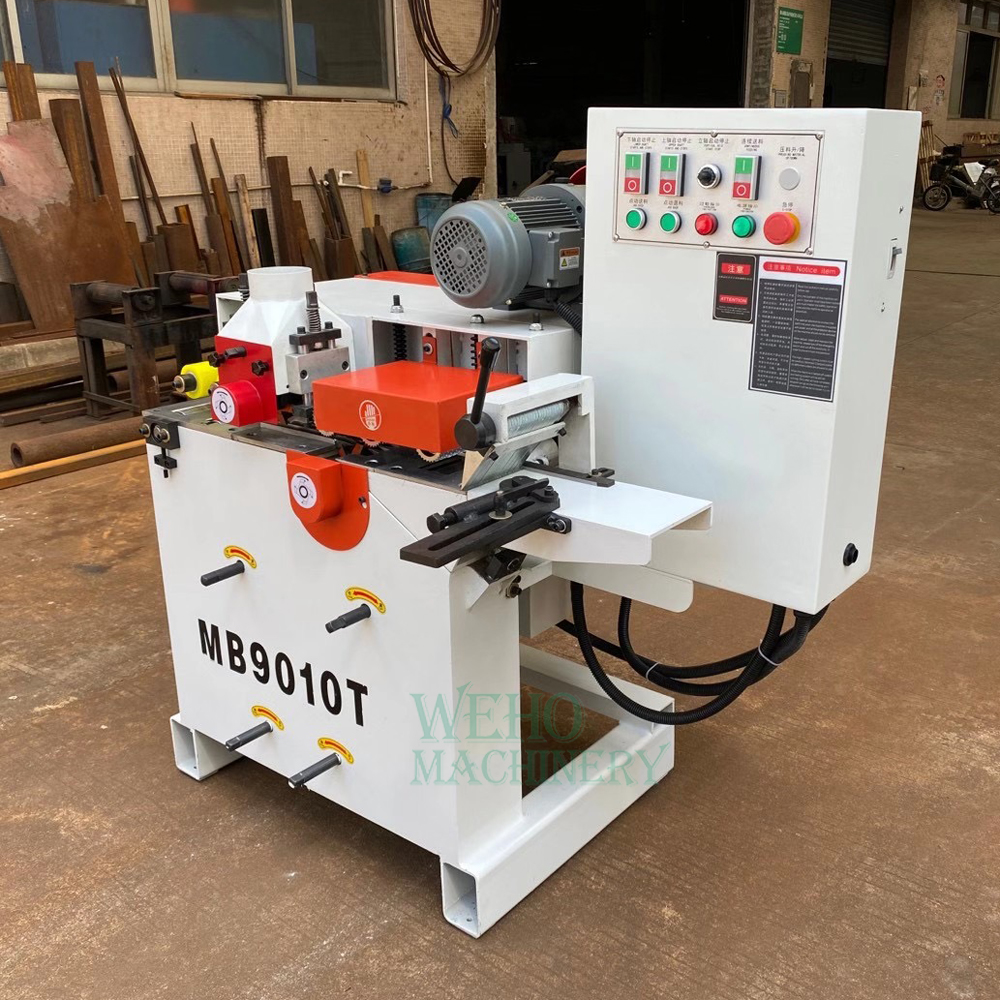

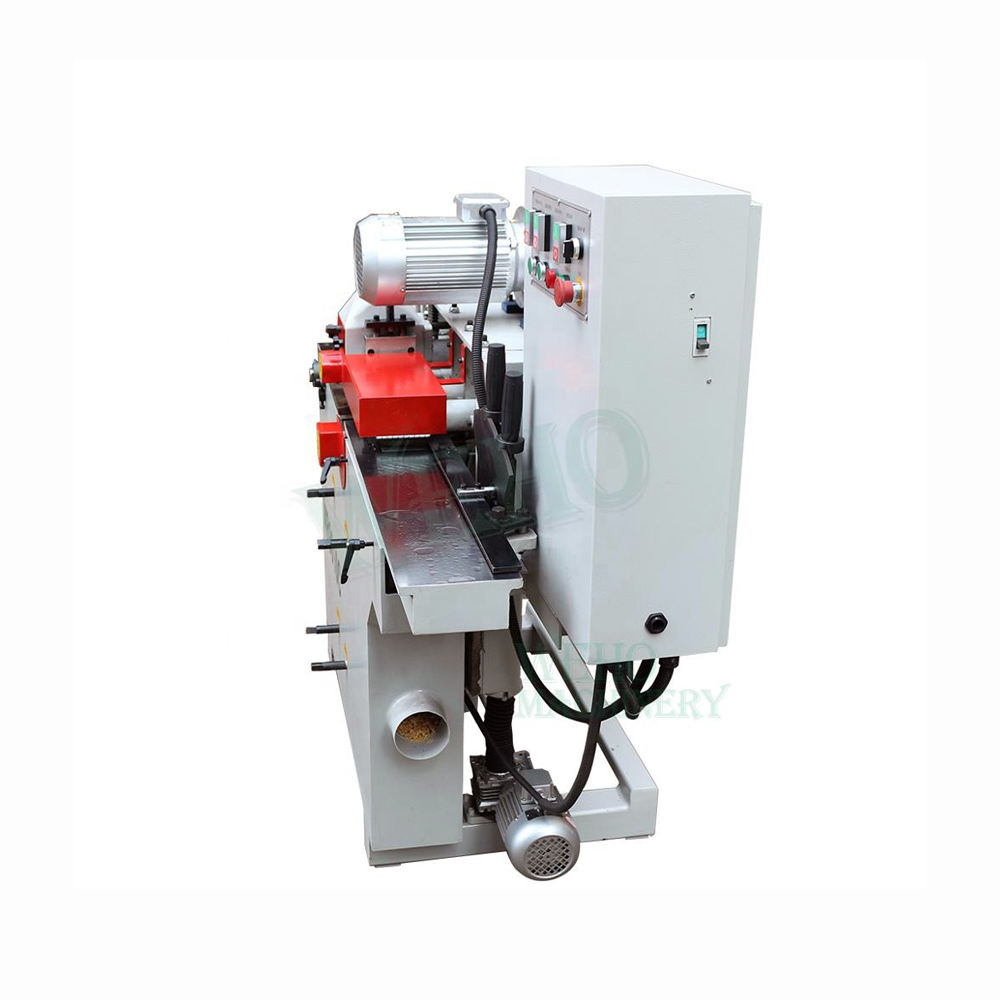

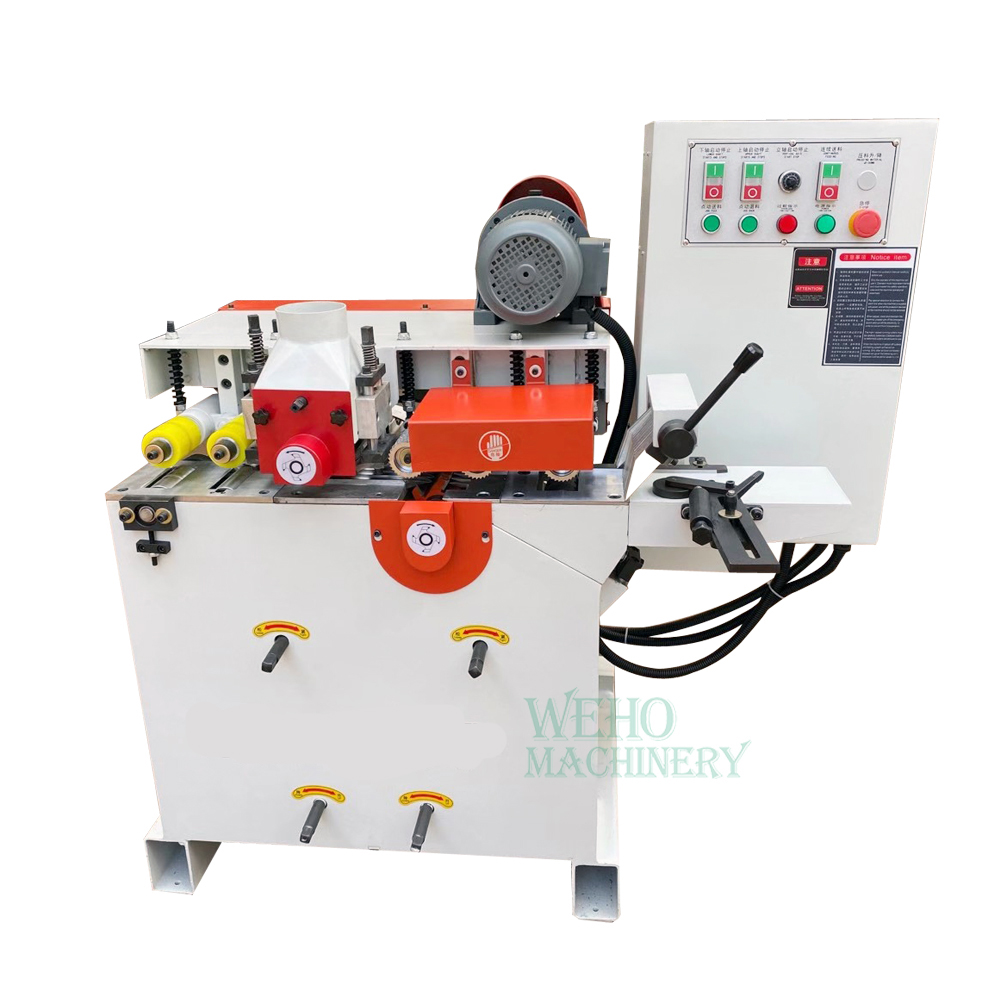

Деревообрабатывающий станок для изготовления швабры и деревянной ручки метлы | Машина для ручки метлы
Model:MB9010T
Working length:250-6000mm
Working width:6-30mm
Main tool Dia:Φ100mm
Power:8.1kw
Working length:250-6000mm
Working width:6-30mm
Main tool Dia:Φ100mm
Power:8.1kw
Details
Spare Parts
Inquiry
![](http://upload.digoodcms.com/594/1609307300441/%E5%8F%82%E6%95%B0.jpg)
The round bar machine can be used in a wide range of applications.This set of equipment is mainly used for shovel, hoe, and round bar. wood dowels cutter with automatic feeding is safe and high efficient.Daily use of mops and tooling in the production of workers and peasants, as well as the decoration of circular wood for furniture.
Модель | MB9010T |
Рабочая длина | 250-6000мм |
Ротационная резка избыточного материала | 1 |
Сырье для тарелки | 1-6 |
Рабочий диаметр | 6-30мм |
Мощность двигателя подачи | 1,1 кВт |
Скорость подачи | 6-30 м/мин |
Мощность двигателя 1-й оси | 3 кВт |
Мощность двигателя 2-й оси | 4кВт |
Максимальный диаметр инструмента | φ100 мм |
Скорость вращения шпинделя инструмента | 8500об/мин |
Размер выходного отверстия для вытяжки | φ160 мм |
Диаметр шпинделя | φ30 мм |
Общая мощность | 8,1 кВт |
Измерение | 1200*800*1300мм |
![](http://upload.digoodcms.com/594/1608798748936/%E5%B1%95%E7%A4%BA.jpg)
![](http://upload.digoodcms.com/594/1614935941575/round_cutter.jpg)
The machine is mainly used for turning wooden sticks, which use double side planer to makes the round rods many pieces one time passing.
![](http://upload.digoodcms.com/594/1614935939707/rod_round_cutter.jpg)
![](http://upload.digoodcms.com/594/1614935943440/round_making.jpg)
Work table
The work table surface was precision ground and then electro chrome plated and polished to a smooth mirror finish. Durable wear resistance surface is easy to clean and maintain.
![](http://upload.digoodcms.com/594/1604570747618/45A%20M-CF100A2%20%20b.jpg)
![](http://upload.digoodcms.com/594/1617870428727/%E5%BE%AE%E4%BF%A1%E5%9B%BE%E7%89%87_20210408154742.jpg)
![](http://upload.digoodcms.com/594/1614935943441/round_rod.jpg)
![](http://upload.digoodcms.com/594/1614935939707/rod_round_machine.jpg)
Cutting tools
The round rod machine can be used to make shaper on top and bottom side as double sides moulder. The raw materials can be square or round, and other types of round bars can be customized.(Processing 4-150mm diameter range.)The finished round rods with tapered ta[ers are esaier to insatll on tools such sa shovel and hoe.
![](http://upload.digoodcms.com/594/1614935937793/rod_making_machine.jpg)
Electrical box and Control panel
The wood dowels cutter with automatic feeding is safe and high efficient.
![](http://upload.digoodcms.com/594/1614935937793/mop_hand_making.jpg)
![](http://sc02.alicdn.com/kf/H86d9b185a1954145a379642361542d96U/228259657/H86d9b185a1954145a379642361542d96U.jpg)
![](http://sc01.alicdn.com/kf/Haf2601fc4bc74e848cd9617fd9d184ccP/228259657/Haf2601fc4bc74e848cd9617fd9d184ccP.jpg)
The round bar machine can be used for processing wooden uneven bars, martial arts bars and other sports equipment, rolling pin, mine pillars, stair railings and other round sticks.
![](http://upload.digoodcms.com/594/1617870428726/%E5%BE%AE%E4%BF%A1%E5%9B%BE%E7%89%87_20210407093017.jpg)
[]
